PRODUCT
InertOn

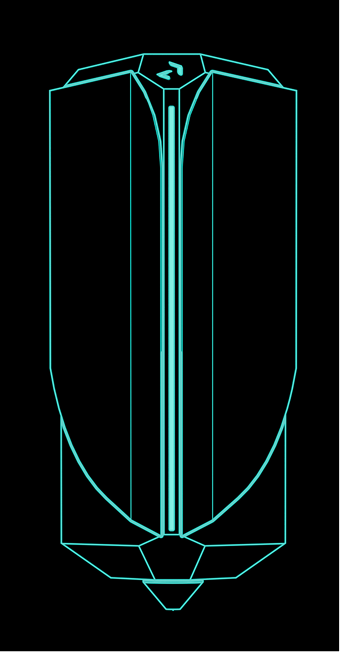

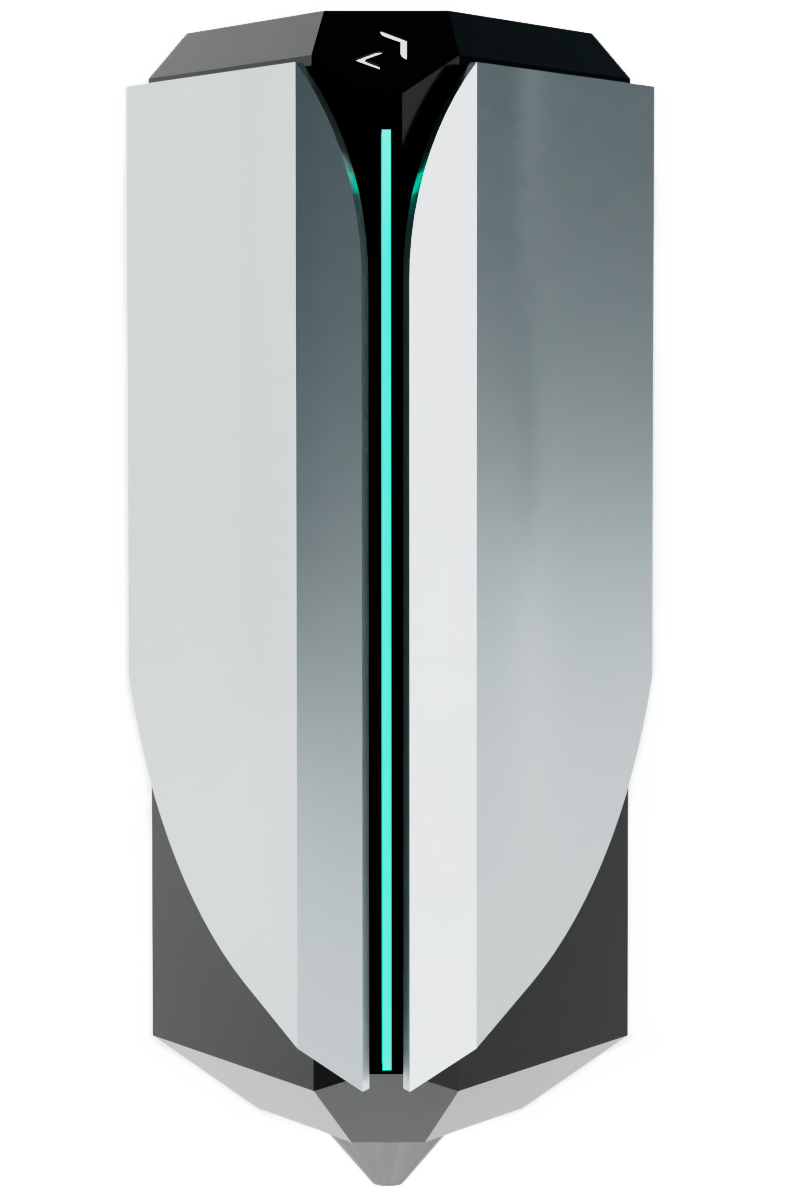

LW-DED Deposition Head Module

Chamber-less LW-DED
Deposition Head Module

PRODUCT SPECIFICATIONS

LASER SYSTEM

Triple IR Laser (1064nm)

Total 2.1kW

Water Cooling System

Real-time Feedback #1

MORPHING SHIELD SYSTEM

Oxygen Level < 20ppm

Downtime < 1min

Real-time Feedback #2

Gas Consumption Below 30L/min

Multiple Gas Channels (Individually Controlled)

WIRE FEEDING SYSTEM

Coaxial Type

Wire Straightener

DIEMSIONS & WEIGHT

585mm x 270mm x 255mm

Approx. 20kg

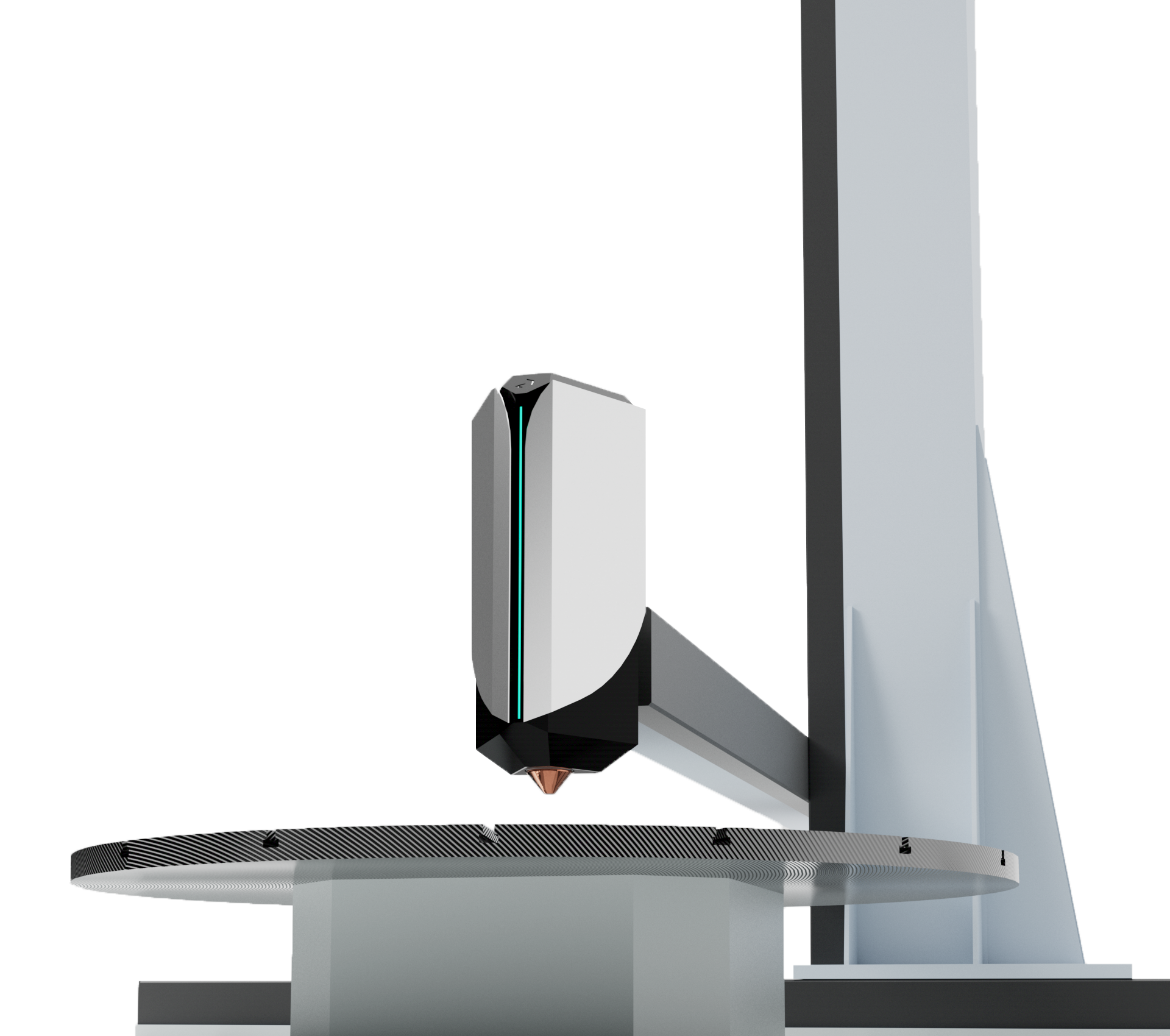

Integration Systems

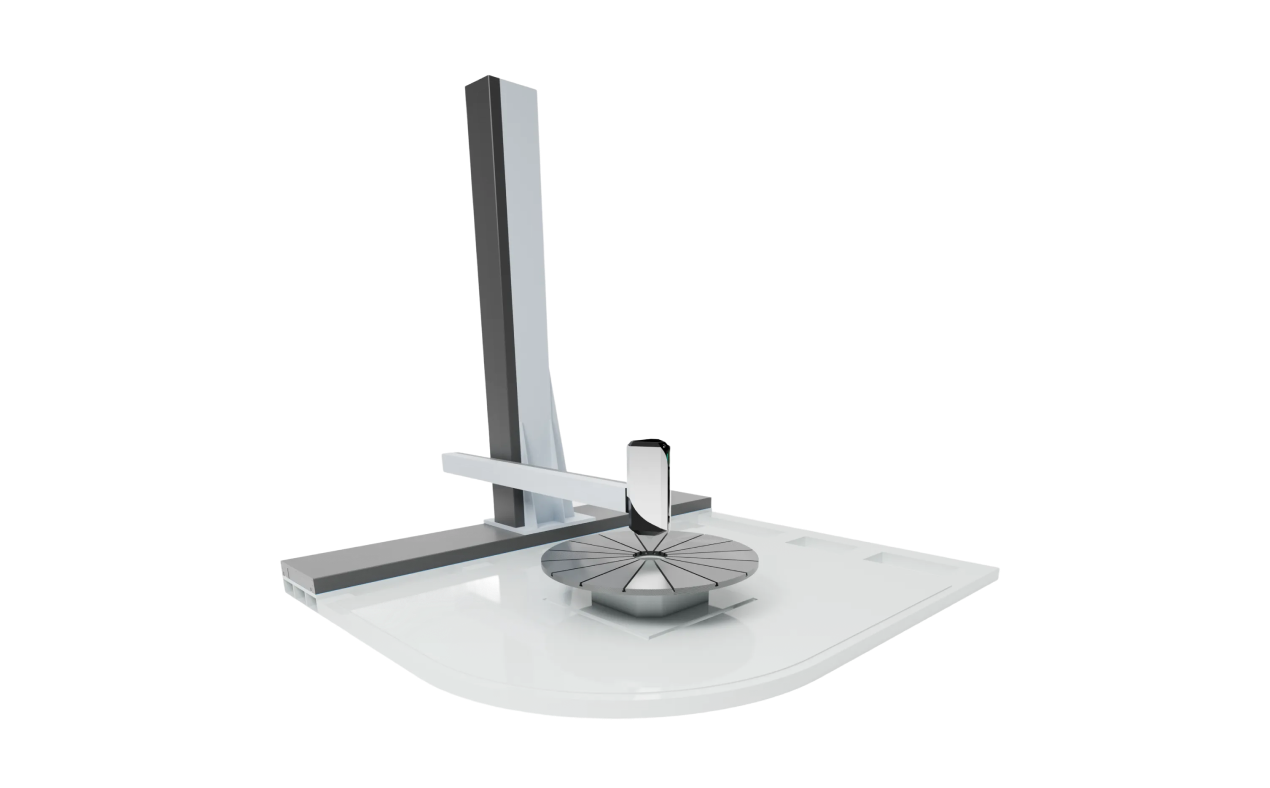

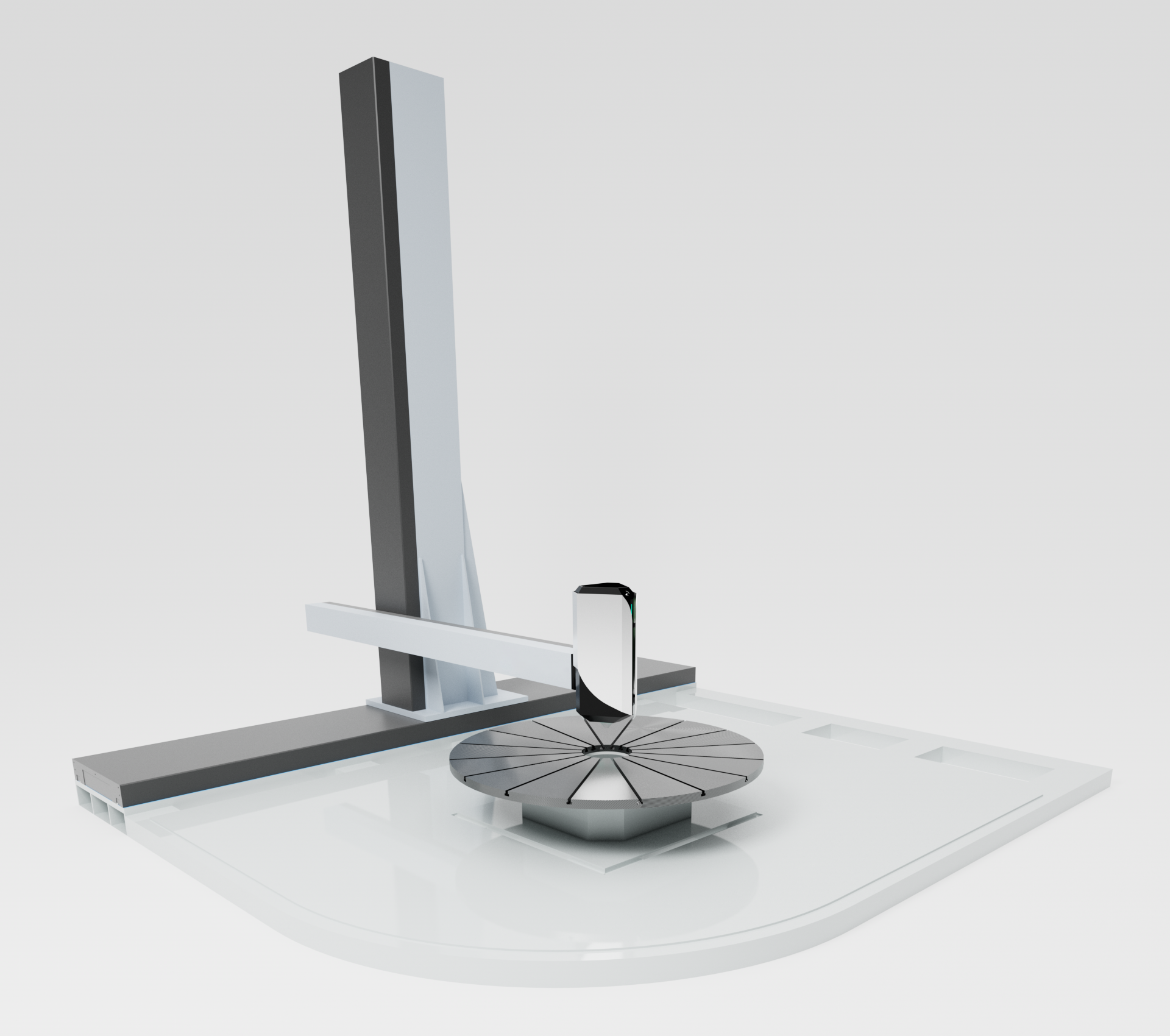

GANTRY SYSTEM

5-Axis Simultaneous: Linear XYZ & Rotary AC

Total 2.1kW

Unlimited Build Size

Real-time Feedback #1

ROBOT ARM SYSTEM

6-Axis Robot Arm & 2-Axis Rotary Table

Total 2.1kW

Unlimited Build Size

Real-time Feedback #1

InertOn OS

InertOn OS monitors critical parameters such as melt pool length and oxygen levels in real-time, with automated post-print reports capturing complete process data
